K:03 – Wireless Edition


K:03 – Wireless Edition is a wireless, ergonomic, mechanical split keyboard with a hot-swap system for quick replacement of MX-compatible switches and the ability to install up to 3 hot-swap encoders on each half.

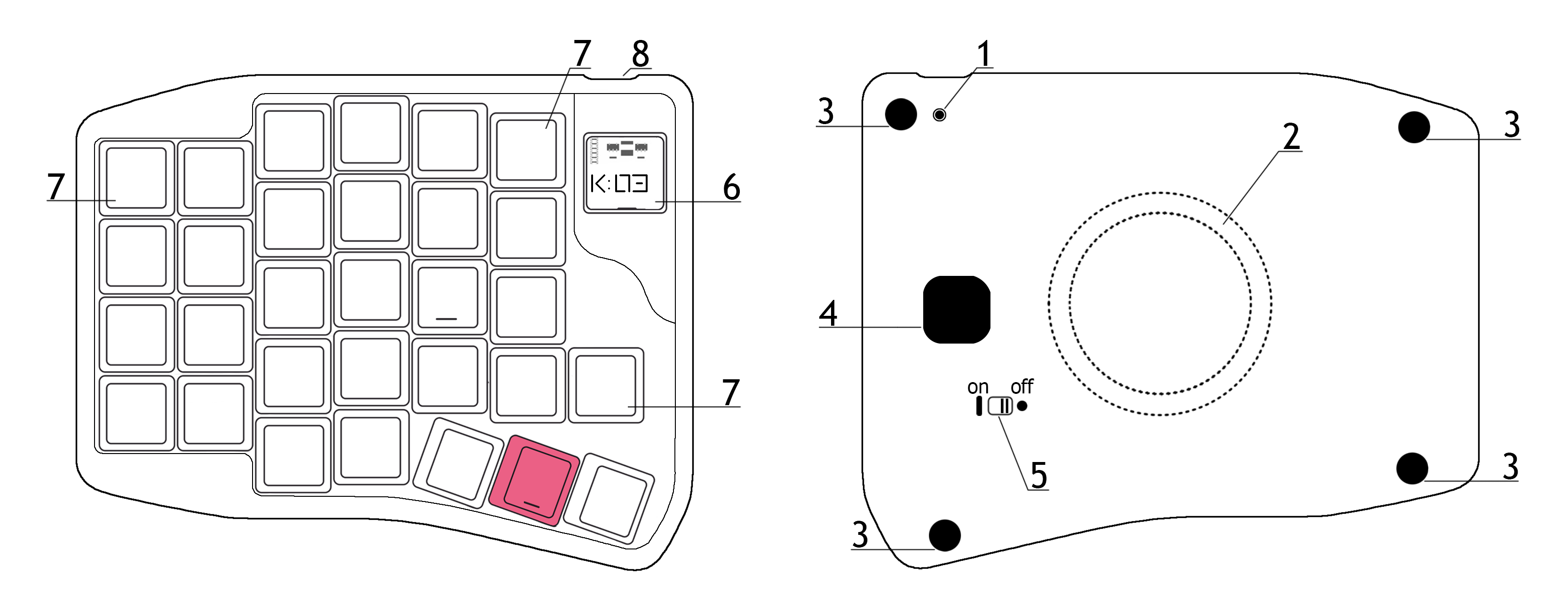

Overview


  1. Button: single press — reset, double press (quickly) — bootloader
  2. Integrated MagSafe ring for wireless charging
  3. Silicone feet
  4. Auxiliary window for disassembling the keyboard case
  5. Keyboard power switch
  6. Transparent panel
  7. Slot for MX switch or hot-swap encoder
  8. USB-C connector

Connection

  • K:03 – Wireless Edition works with devices running Windows, macOS, Linux, Android, iOS
  • The keyboard connects via Plug and Play (PnP) — no additional driver installation required
  • The keyboard comes ready to connect to your device with the firmware current at the time of purchase
Wired connection

The keyboard supports wired connection via USB-C connector. Use the included cable or any other USB-C cable with data transfer support.

The left half of K:03 – Wireless Edition is the master and is intended for wired connection.
Wireless connection (without Ergohaven’s Qube)
  1. Turn on both halves of the keyboard — the halves are already synchronized with each other
  2. Select a connection profile on the keyboard — if you need to connect to multiple devices, you can skip this step for the first connection
  3. Connect the keyboard to your device — enable Bluetooth on the device, then pair it in the device settings
Connection via Ergohaven’s Qube

Ergohaven’s Qube is a universal dongle for Ergohaven wireless keyboards that displays useful information and reduces keyboard power consumption.

  1. Connect Ergohaven’s Qube to your computer using a Type-C cable and wait for the Qube to boot
  2. Turn on the left half of the keyboard — it will automatically connect to the Qube
  3. Turn on the right half — it will also connect to the Qube, completing the setup
Connecting additional devices
  1. Enable Bluetooth on the device you want to connect the keyboard to
  2. Turn on the keyboard by switching the power switches on the bottom covers of both halves to the ON position — the keyboard will enter pairing mode

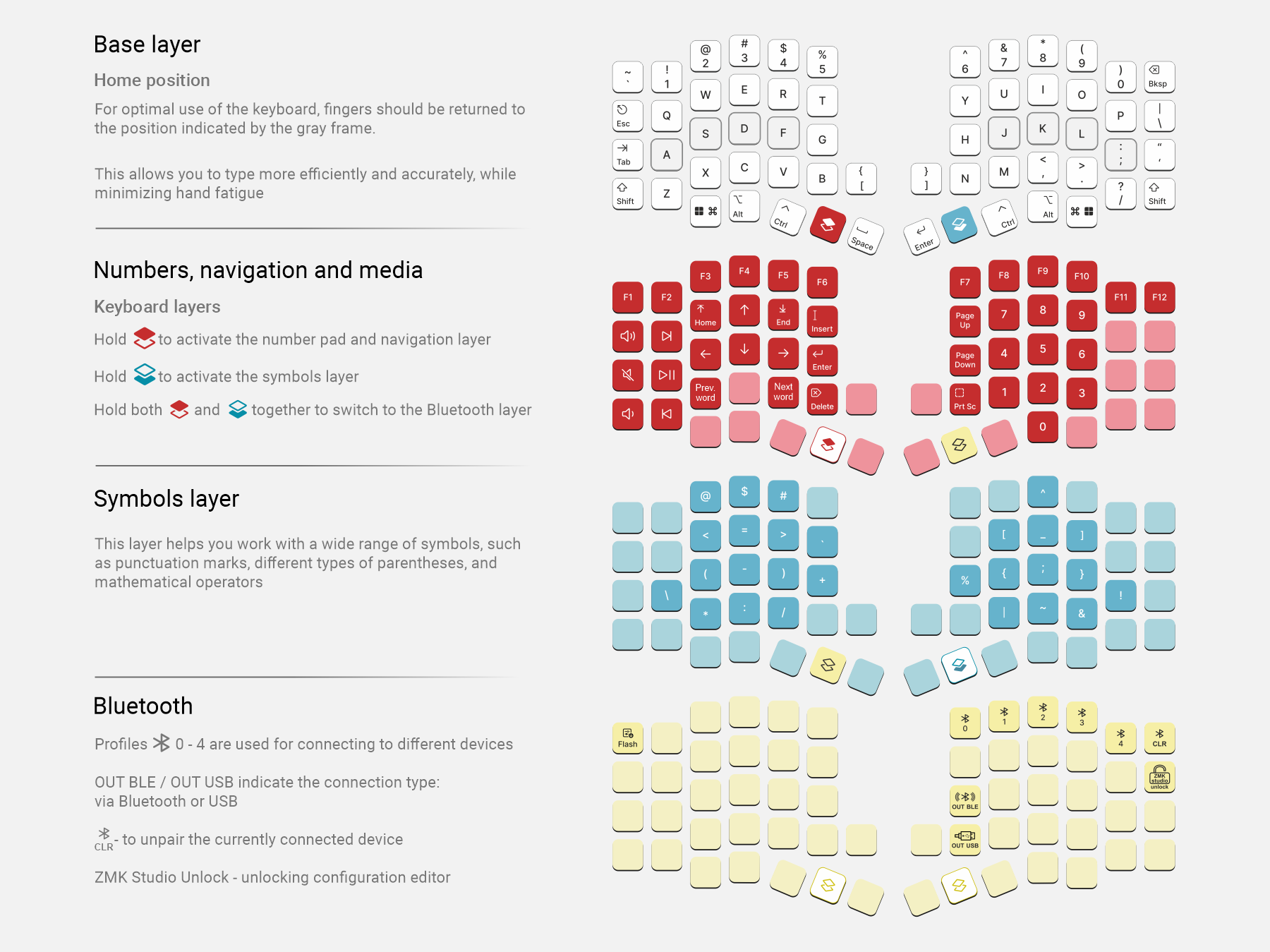

  3. Switch the BT profile on the keyboard using the corresponding keys (layer 3 in the default layout)
  4. Start a Bluetooth search on your device and find the keyboard in the list
  5. Connect the keyboard to your device
Adding wireless connection to devices via Qube

Charging and Battery Monitoring

Refer to the corresponding section of the article First Steps with a ZMK Keyboard

To charge the keyboard battery, the power switch on the bottom of the half must be in the On position.

Configuration

Refer to the article Keyboard Configuration in ZMK keymap-editor

Ruen Mode

Refer to the article RuEn Layout for Wireless Keyboards

Firmware update

Firmware files and update instructions are available here

Care and Maintenance

  • Periodically clean the case from dust and dirt using a dry or slightly damp cloth.
Do not use aggressive cleaning agents (alcohol, acetone, gasoline, solvents, concentrated acids or alkalis)!
Do not allow liquid to get inside the device!

Support

The keyboard comes with a 3-year warranty and service support.

If you have any questions about setup, firmware, or operation, please contact the Ergohaven Telegram group or knowledge base
